MTP-1 device
Categories:
Trim and traveling device MTP-1 is used for a work in ACS system SAU-60U of helicopter Ka-60U at hand and automatic control through you channel, pitch channel and height of helicopter. The device is put into operation with infinite torque motor DBM-50-0.004-3-2.
Main specification:
| Supply voltage of device’s electric automatic mode, V | from 24 up to 29.4 |
| Consumption current of electric actuator, A, max | 1 |
| Supply voltage of electromagnetic clutch at hand mode, V | from 18 up to 29.4 |
| Rated loading moment, H*m (kgs*m) | 24.5 (2.5) |
| Angle of turn of output shaft to each side from mean position, bordered with inside blocks, degree | ±(22±1) |
| Turn speed of output shaft at rated loading moment and maximal steering command, degree/s | 2.2±0.1 |
| Angle backlash of output shaft of currentless device at loading moment 4.9 H*m (0.5 kgs*m), degree, max | 0.2 |
| Mass, kg, max | 3.2 |
Purpose: Ka-60U, Ka-52.

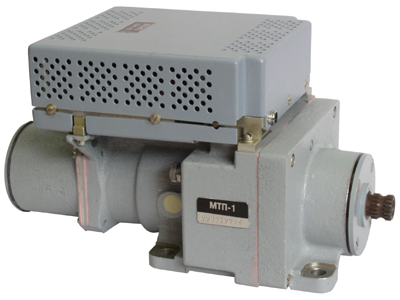

MTP-1
