Mechanism EPK-40-10

Categories:

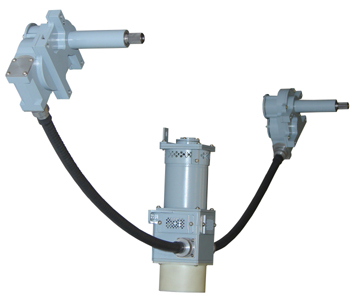

Electric actuator EPK-40-10 is designed to drive the two brushes of the windshield wiper. Actuator has two speeds. Brushes return to the initial position after actuator switching off.

Specifications:

Rated supply voltage, V 27
Consumption current:
At the first speed, A, maximum 8
At the second speed, A, maximum 10
Rated loading moment on each output shaft of reducers H·m (kgs·m) 10 (0.98)
Rated angle of output shafts, degree 43 (+10/-3)
Number of double oscillations of the reducer output shafts:
At the first speed from, r.p.m. 20 up to 30
At the second speed from, r.p.m. 30 up to 60
Operating mode-intermiffent, min, maximum 30
Mass, kg, maximum 4.5

Application: «ANSAT»
