Electric actuator IMPR-80

Categories:

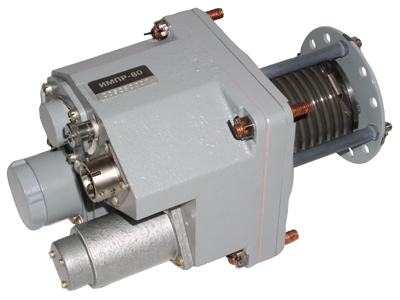

It is used for work in ASC system SAU-80 of steering sur facescontrol of airplane SU-80. It is consists of DC electronic motor DB 32-25-12.

Specifications:

DC Rated supply voltage, V 27
Loading moment
rated,N·m (kgs·m) 5.88 (0.6)
maximum, N·m 9.8 (0.6)
Consumption current at rated supply voltage and at rated loading moment in normal environmental conditions:
Of electric motor, A, max 0.75
Of electromagnetic clutch, A, max 0.4
Maximum working angle of turn of drum, degree ±125
Angle rotation speed of drum at normal environmental conditions and normal supply voltage:
At no-load, o/c (r.p.m.), min 48
At counter acting load 5.88 H·m (0.6 kgs·m), o/c (r.p.m.), min 45 (7.5)
At counter acting load 9.8 H·m (1.0 kgs·m), o/c (r.p.m.), min 33 (5.5)
Drum back lash at alternating-sign moment from 0.49 up to 0.98H·m (from 0.05 up to 0.1 kgs·m) and at switched clutch, degree, max 0.5
Mode ofoperation continuous, cyclical
Mass, kg, max 2.3

Application: Su-80GP
