Switching on contactors with DC control circuit voltage of 27

Categories:
Type Switching current, A Switching voltage, V Number of switched circuits Operating mode Overall dimensions, mm Mass, kg
direct alternating
TKE203DT 2 30 200V 400Hz 3 continuous 34x43x52 0.1
TKE503DT 5 30 200V 400Hz 3 continuous 34x49x53 0.12
TKE503DODG 5 - 200V 400Hz 3 continuous 34x44x64 0.19
TKD102A1 10 30 - 2 sxort-time 34x43x54 0.125
TKD102DT 10 30 220V 400Hz 2 continuous 34x43x60 0.125

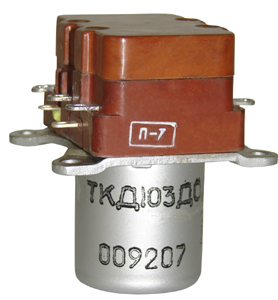

TKD103DODB 10
5		 30
125		 240V 400Hz
420V 50Hz		 3 continuous 49x40x59 0.18
TKD103DODG 10 - 220V 400Hz 3 continuous 39x47x71 0.24
TKD202D1 25 30 220V 400Hz
240V 50Hz		 2 continuous 55x44x60 0.2
TKD203DA 20 30 220V 400Hz 3 continuous 34x43x54 0.125
TKD203DODB 25
10		 30
125		 240V 400Hz
420V 50Hz		 3 continuous 108x60x65 0.36
TKD203DODG 25
12,5		 30
-		 220V 400Hz
380V 50Hz		 3 continuous 108x51x75 0.42

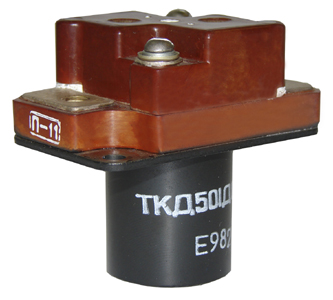

TKD501DODG 50 30 220V 360-1100Hz 1 continuous 61x39x56 0.21
TKD503DOD 50
25		 30
-		 220V 400Hz
380V 50Hz		 3 continuous 133x63x81 0.60

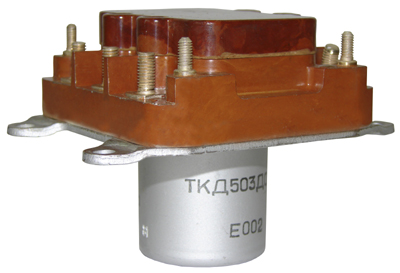

TKD503DODB 50
25		 30
125		 240V 400Hz
420V 50Hz		 3 continuous 122x76x75 0.65

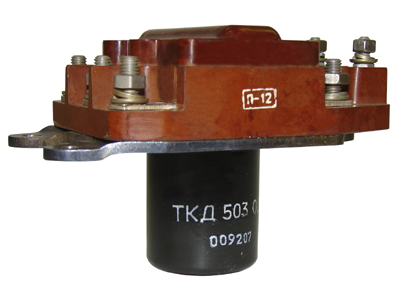

TKD503ODL 50 30 207V 360-1100Hz 3 continuous 107x63x81 0.41
TKS103DOD 100
50		 30
-		 220V 400Hz
380V 50Hz		 3 continuous 148x68x85 0.85

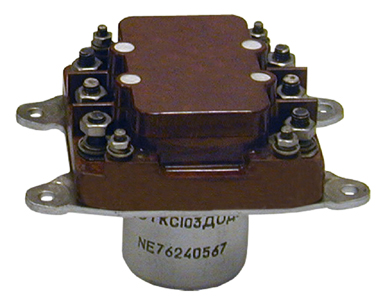

TKS103DODB 100
50		 30
125		 240V 400Hz
420V 50Hz		 3 continuous   0.87

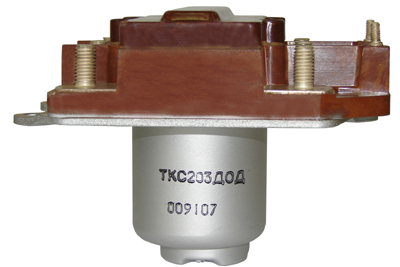

TKS203DOD 200
100		 30
-		 220V 400Hz
380V 50Hz		 3 continuous 192x92x102 1.6

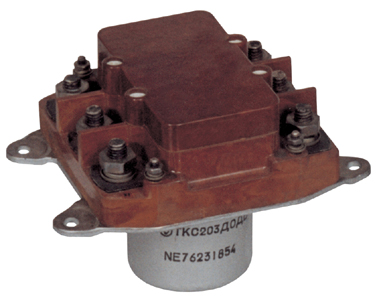

TKS203DODB 200
100		 30
125		 240V 400Hz
420V 50Hz		 3 continuous 187x107x98 1.65
TKS403DO 400
200		 30
-		 220V 400Hz
380V 50Hz		 3 continuous 240x111x120 3.1
TKS403DODB 400
200		 30
125		 240V 400Hz
420V 50Hz		 3 continuous 240x127x116 3.2
