AC electric motors

Categories:
Type Supply voltage,
V		 Torque on motor shaft,
g/cm		 Power,
W		 Rotational frequency,
rpm		 Overall dimensions,
D x L, mm		 Mass,
kg
ADU-1AM 115;60 400Hz 10 0,34 3300 41x86.5 0.4
ADS-500M 200 400Hz 700 511 7100 82x180 3.75
ADS-500PT-2 series 2 200 400Hz 25000 277 10800 104x172.5 5
ADS-600TM 200 400Hz 1000 1150 11200 195.8x97 6.2
ADS-1000TV 200 400Hz 13000 922 6900 102x225 6.5

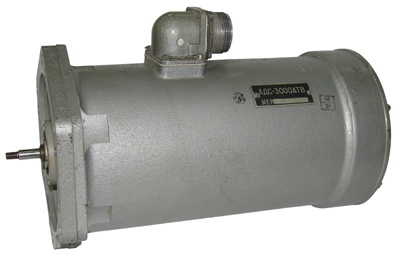

ADS-3000ATV 200 400Hz 40000 2961 7200 142x270 14.5
DAT80-250-12 200 400Hz 2000 250 10600 68x120 2.8
MBA-3DP supplied as a part of BA-3DP 200 400Hz 25000 1902 7400 171x225 10
SM-5 40 500Hz 65 5 7500 57x69.2 0.44
